For various reasons[1] I’ve been looking to move away from Time Machine. I also needed to help my brother set up backups for his computer as the other backup programs we tried were just not reliable at all and didn’t work for our use case.

Looking for solutions, I decided to go with restic as I’ve already been using it on my servers for years and absolutely love it. But then I realized I needed some sort of wrapper to make it easier to work with on a desktop OS. I’ve looked at resticprofile and Backrest, and I certainly think they’re great projects! But for my use case, I wanted something even simpler. Like Time Machine if it was instead open-source and cross-platform and modern and Actually Good.

Here it is

So, I started writing my own wrapper in Go, and called it Restray[2]. The intent was to make a very simple and intuitive scheduler for restic that can be used on any OS. It sits in the system tray and all of the functionality is accessible through the tray menu. You can configure and set it up through a config file, or optionally use the very barebones web-based editor through your browser.

Here’s previews of Restray on MacOS, Linux[3], and Windows. And also a screenshot of the web editor if you wanted to see that.

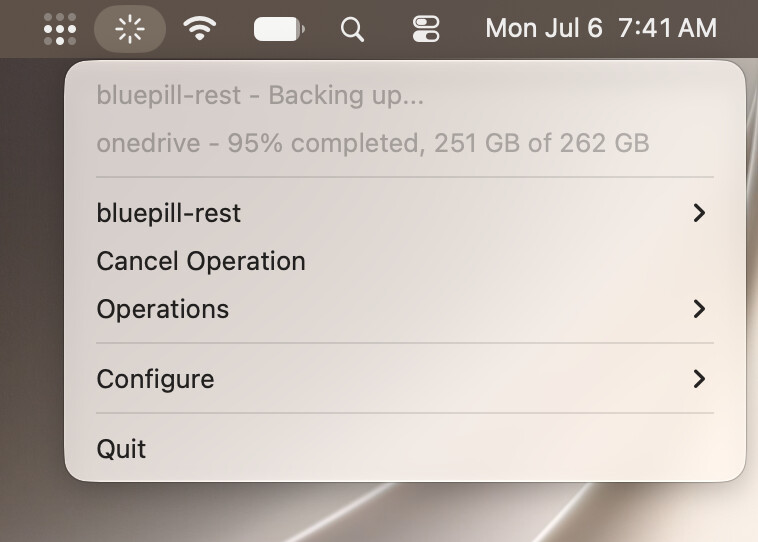

A screenshot of restray's tray menu on MacOS
A screenshot of restray's tray menu on MacOS758×542 46.6 KB

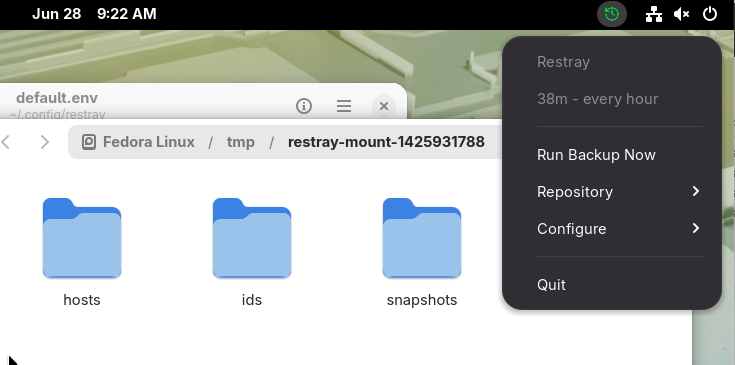

A screenshot of restray's tray menu on Linux
A screenshot of restray's tray menu on Linux735×365 55.5 KB

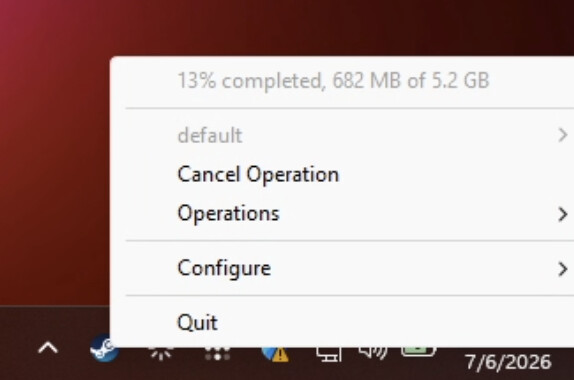

A screenshot of restray's tray menu on Windows
A screenshot of restray's tray menu on Windows574×380 25.6 KB

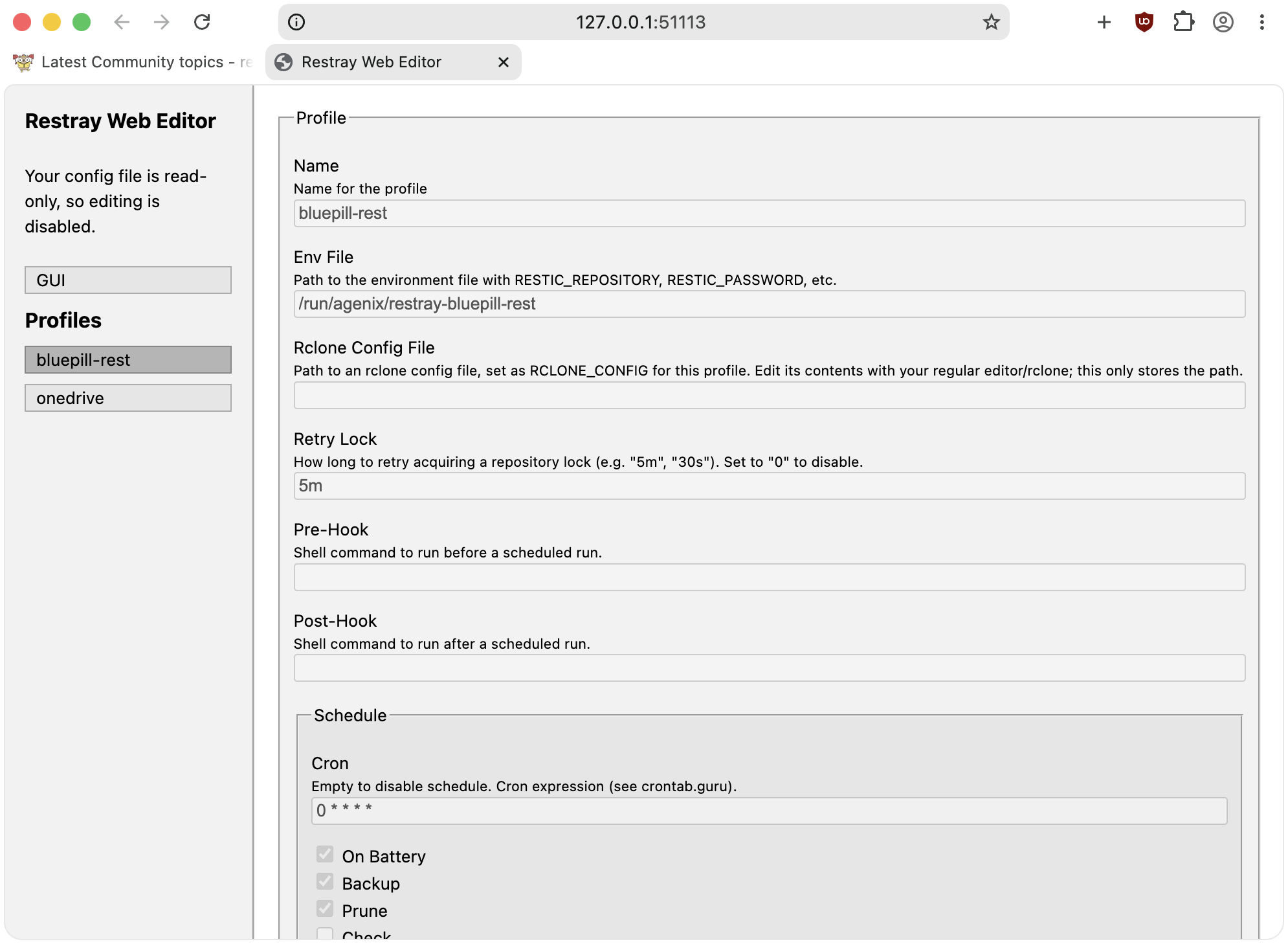

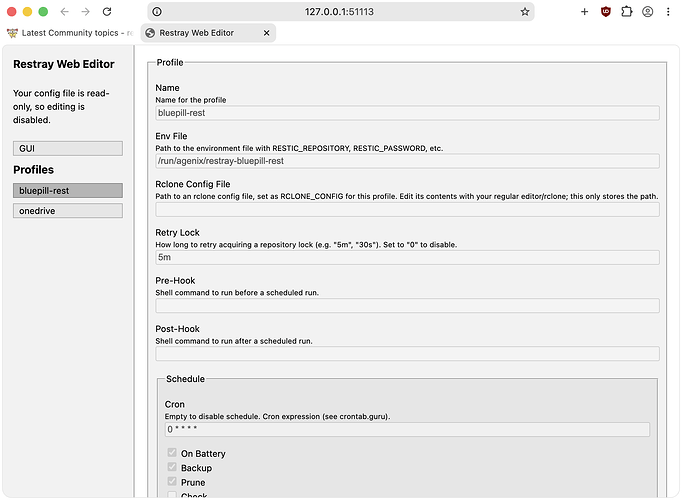

A screenshot of restray's web config editor
A screenshot of restray's web config editor1990×1458 243 KB

Some cool features

  • Simple scheduling, just input a cron expression. To avoid complexity it runs in the background with it’s own scheduler, so you don’t have to deal with Task Scheduler/launchd/systemd/whatever else is out there[4]
  • Restray supports multiple backup profiles, each with their own schedule, environment file, and settings, which can be useful for having both on-site and off-site backups (in my case, rest HTTP server, and OneDrive through rclone)
  • If restic is not found in your PATH, on Windows and Linux Restray can self-manage it’s own restic binary from GitHub and update it daily[5]. The MacOS .app also has the latest restic binary bundled at build time
  • If you need to restore something, on MacOS and Linux you can easily run restic mount from the Operations menu, assuming you have FUSE
    • I am also working on a cross-platform QT repository browser that will integrate with Restray, however it will be a separate project and program which you can use standalone. As an alternative to the web-based restic-browser. I will post about that later if I ever do end up finishing it.
  • Offers a “Shell” operation that lets you instantly drop into your default terminal with the selected profile’s environment file sourced, and restic binary loaded into your PATH, allowing you to do more advanced CLI things without friction. works on Windows too!
  • Can be configured to detect whether or not the machine is on battery power, and based on that, pause the schedule.
  • Pretty icon animations that I spent a lot of time on for no reason because I was bored
  • Config file hot-reloading
  • Hooks
  • Flexible configuration
  • See the README for even more features and config reference

A little disclaimer

While me and my brother have been using Restray for a little while now without issues, this is still pretty new stuff and if you experience any bugs please make an issue and I’ll happily look into it.

Ok but how do I get it

For most releases I compile and upload binaries for Windows, Linux, and Darwin (MacOS) and you can get them on this page. If you’re on MacOS, keep in mind that the MacOS app is not signed/notarized so you will need to remove it’s quarantine.

But you can also compile it from source if you’d like, all you need is Go. I also have a Nix package and NixOS module available in the repo’s flake :^)

Ok but how do I use it

It should hopefully be relatively straightforward to use for anyone who’s familiar with restic, but I may make a little guide or video in the future on setting it up. Generally all you have to do is run it, configure the repository path and password in the env file, and configure paths, cron schedule, or arguments in the config file.

Releasing this in case someone finds this useful. I’ve been wanting to get into desktop software development for a while (less web dev…) and I’m pretty new to this, so if you have any suggestions on improving Restray, let me know here or on the issue tracker.

I’m probably going to refrain from adding new features though, since it appears to be mostly feature-complete in my eyes. I want to focus more on refining the UX and codebase where possible though I think it’s in a pretty good state right now.

Here’s a cool landing page I made if you want a summary

Awesome credits

This is copied from the README so it might be out of date

Inspirations and cool things:

Libraries used:

  1. Time Machine is not cross-platform, which means I can’t have one consistent backup manager across all of my devices. And Apple is phasing out AFP in the next version of MacOS which means I’d have to use SMB which tends to be slow. Though Time Machine is also just slow in general… And restic is just awesome. ↩︎

  2. waow. restic + tray. what a revolutionary name… ↩︎

  3. This screenshot was taken on GNOME with the system tray extension, but it works flawlessly on KDE Plasma and other environments too. Really anything that supports the tray should work. This particular screenshot is a little outdated, but you get the idea. ↩︎

  4. But if you want to, you can! Restray can also be executed through CLI/daemon on Linux/MacOS, see restray --help for a list of commands. But at that point you might just wanna use resticprofile ↩︎

  5. Configurable with the manage_restic setting, unavailable in CLI/daemon ↩︎

2 Likes
2

I may also eventually support using Rustic as a backend aswell, but that’ll be for a later time
